The diesel engine efficiency of Toyota's 1HZ engine is legendary, but as most diesel owners know only too well, the downside is somewhat leisurely performance, especially when towing heavy loads or in an armoured vehicle application.
The Safari professionally developed and engineered Safari Intercooled Turbo System for Toyota's 1HZ diesel delivers amazing performance.
With thousands of Safari 1HZ turbo systems out there on roads and tracks all over the planet, Safari is the only manufacturer of turbocharger systems with the deep understanding of this engine and the engineering expertise to offer the most durable and powerful turbo enhancement for the 1HZ diesel engine.
The heart of the Safari Intercooled Turbocharger System is a super-compact and highly robust air-cooled turbocharger with custom Safari aerodynamic configuration. Through thorough engineering and development, the result is a turbocharger that is ideally suited to the dynamics of the vehicle and with extremely high durability compared to regular diesel spec turbochargers commonly found in retrofit turbo systems.
|The Safari commitment to outstanding performance. "The Safari philosophy will never change: Durable performance must always be achieved."
Whilst Safari delivers the base Safari turbocharger system at durable 160 horsepower, the highly advanced Safari Intercooled Turbo system raises the bar to 200 horsepower by engineering additional components that address the specific thermal and gas flow requirements of a high power Toyota 1HZ engine - to deliver even greater engine performance and high engine durability.
In order to reduce the thermal load on the turbocharged 1HZ engine, efficient intercooling is employed to chill the compressed charge air before it enters into the engine intake manifold.

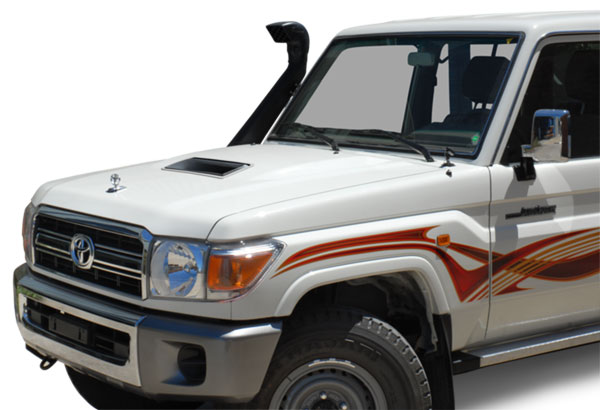

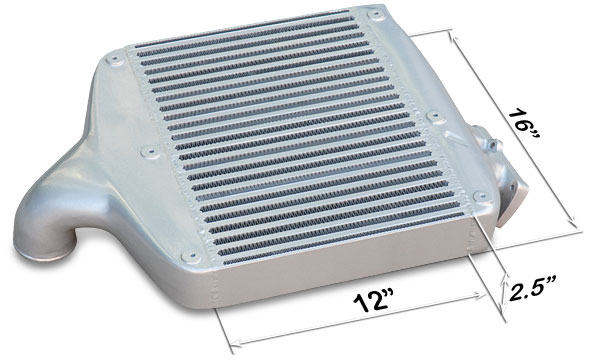

A huge 16" x 12" x 2.5" intercooler assembly is cleverly packaged inside the engine bay envelope and is fed a huge volume of fresh air via a robust and durable engine mounted cast alloy scoop. In addition, the Safari Intercooler design solves potential engine overheating issues that would most certainly be experienced by systems that employ intercoolers mounted in front of the stock radiator core (which is designed by Toyota to cool a 130 horsepower engine with GVM of 3500 kg). Better still is the intercooler scoop/hood panel interface that encourages air to flow out from the engine bay to promote even greater air flow through the stock engine coolant radiator.
There is no doubt that the Safari Intercooler system delivers the ultimate intercooling performance and engine durability under extreme high temperature and high load conditions typically experienced in armoured vehicles applications.
High Output Exhaust System
Unlike intercooling which lowers the intake charge air temperature, a highly efficient exhaust system evacuates hot exhaust gasses quickly from the exhaust manifold and promotes cooler combustion chamber temperatures - thus further lowering the thermal load upon the high power turbocharged Toyota 1HZ engine.

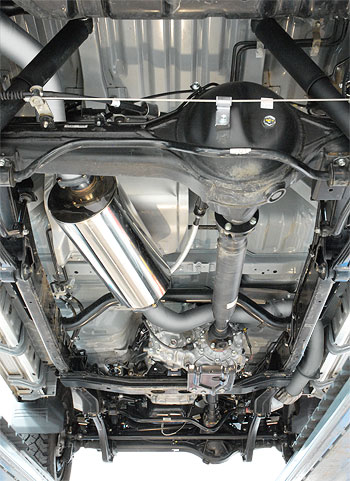

Safari has developed what is arguably the ultimate in maximum efficiency exhaust systems for the armoured vehicle industry. Precision manufactured in true 3" tube for high gas flow capacity, Aluminized steel for corrosion resistance, mandrel bent for maximum flow efficiency and 4-bolt flanged exhaust connections for high strength, unmatched fatigue resistance and a lifetime of leak-free operation. Moreover, the Safari exhasut system has been designed for the maximum clearance to vital components, zero contact with body and suspension and installation is a breeze.
The result is a superb exhaust system that delivers almost 100% improvement in exhaust gas flow capacity and with the added benefit of exhaust sound levels close to that of the stock vehicle.

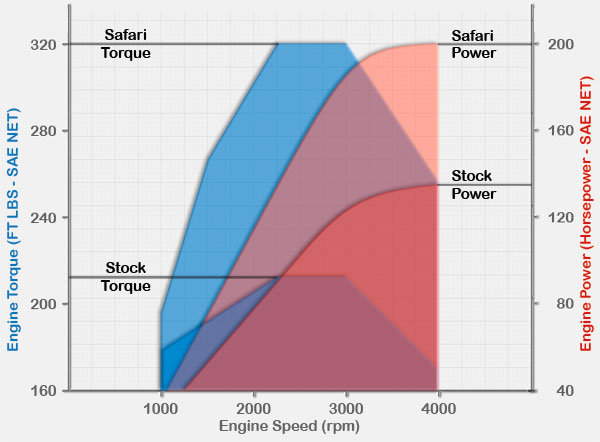

|The Safari Intercooled Turbocharger system is a thoroughly engineered turnkey system designed to deliver the highest possible engine durability at 190 horsepower (SAE NET) and addresses the specific requirements of powering the 5500 GVM of a fully armoured 76 series carrying ten passengers, in ambient conditions from minus 20C to plus 50C.
In an armoured vehicle application, Safari delivers a number of optional enhancement products to address the special operational requirements of remote locations that demand extended high-load durability in sand and dust, tropical heat and water through to extreme cold and snow. This modular Safari solution is based upon the one Safari Intercooled Turbocharger system to address these special operational requirements.
|Click here for a detailed chart showing intercooled intake manifold temperature and ambient temperature during arduous driving conditions in high ambient heat.
|Optional Safari 4x4 Products for Armoured Vehicle Applications
|- Safari Snorkel System
|The prefect option for deployment in terrain where river crossings are anticipated and with the optional cyclonic pre-cleaner, extended operation in dry and dust-hazard conditions.
Click Here for more information on the Safari Snorkel System
|- Safari Oil Cooler System
|A comprehensive system including custom air ducting for improved engine durability in hot climates and extended periods of sustained high engine load.
Click Here for more information on the Safari Oil Cooler System
|- Safari Radiator System
Information Available Soon
|A complete radiator assembly with 60% improvement in heat rejection for improved engine durability in hot climates and with armour sheeting between the vehicle grille and radiator frontal surface. - Information available soon
|- Safari Heavy Duty Clutch
|A complete clutch and pressure plate assembly with 60% improvement in load rating for improved drivetrain durability -
Click Here for more information on the Safari Extreme Duty Clutch Assembly
|- Safari High Speed Gear Assembly
|A precision engineered replacement 5th gear assembly that delivers taller gearing for reduced engine rpm at high vehicle speed.
Click Here for more information on the Safari 5th Gear Upgrade
|- Boost Compensator
|Safari recommends a boost compensator for the Safari Turbo system. The boost compensator delivers maximum power with minimum smoke and greatly enhances the driveability and fuel economy.
